Pivots
Pivots come in all sorts of shapes and sizes, and their designs are highly dependent on mechanism requirements. These examples provide some insight into different solutions for the many challenges of designing pivots.
Featured
-

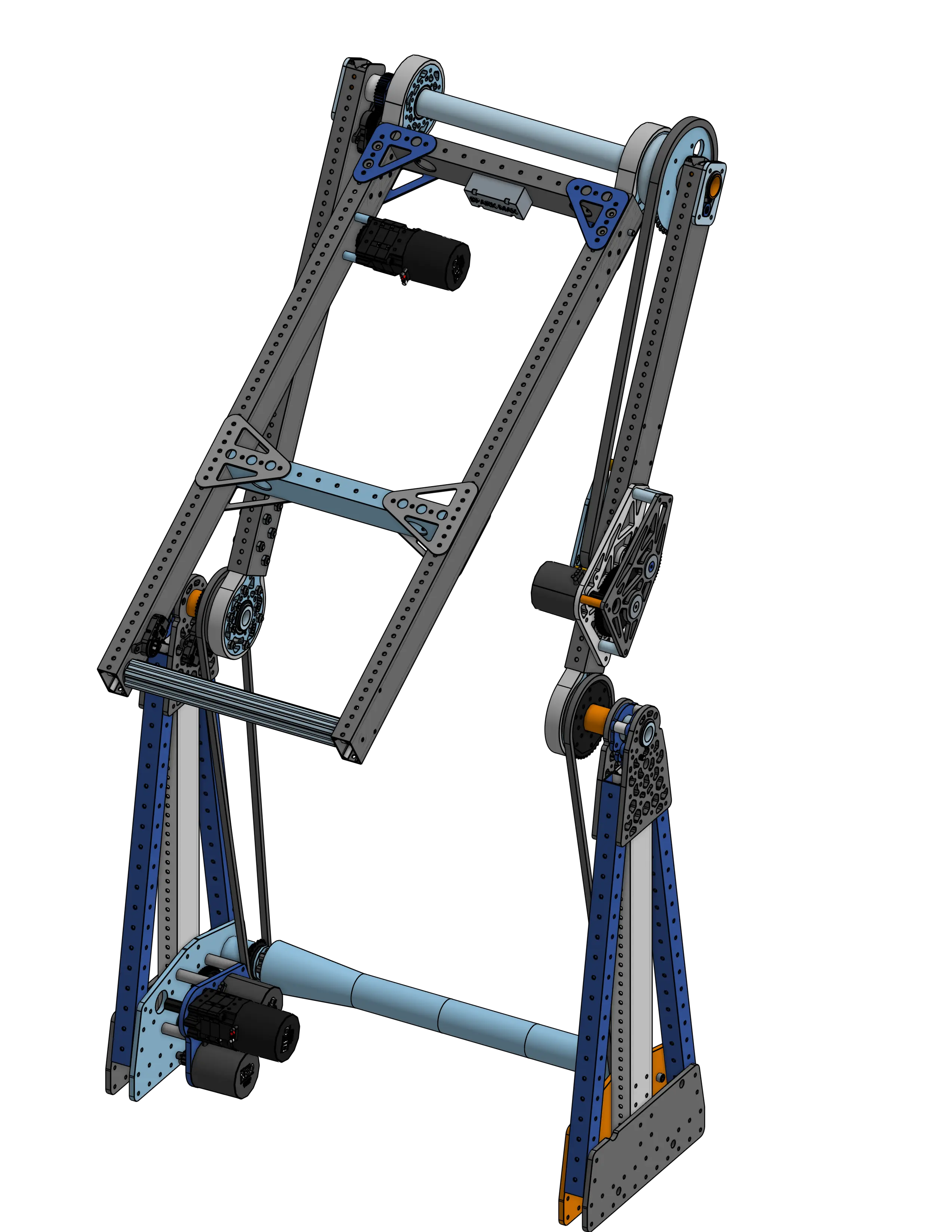

Double jointed arm, high pivot, A-frame structure, stub axles
-
Chain-driven custom dead axle pivot, electronics and camera mounts, rotating final stage tensioning
-

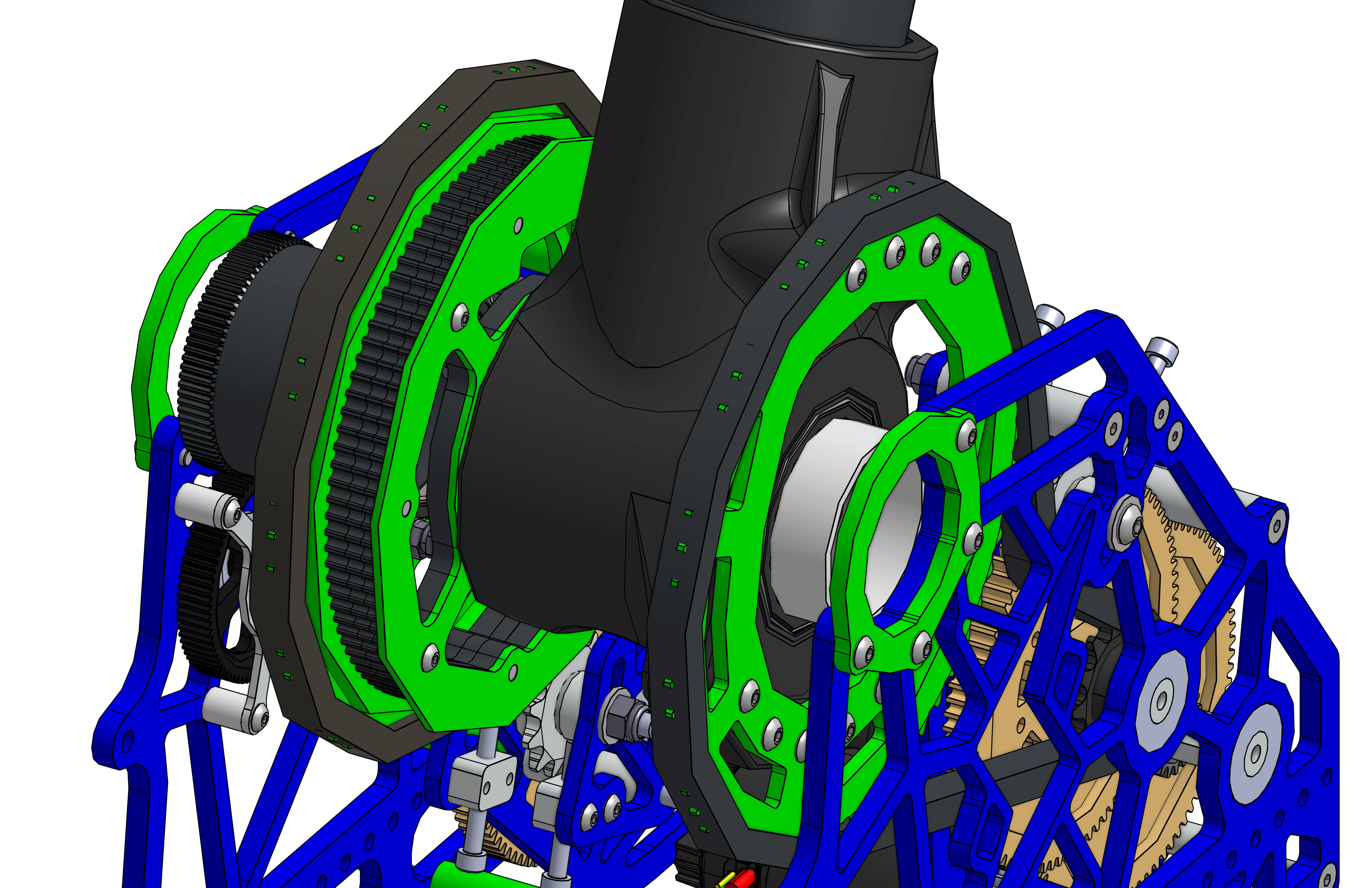

A unique sector lantern gear driven pivot for low backlash
-
A high torque belt driven pivot for a double jointed arm
