Slapdown Intakes
The slapdown style of "Over the Bumper" intakes is very common in situations where your packaging is constrained horizontally, but not vertically.
-

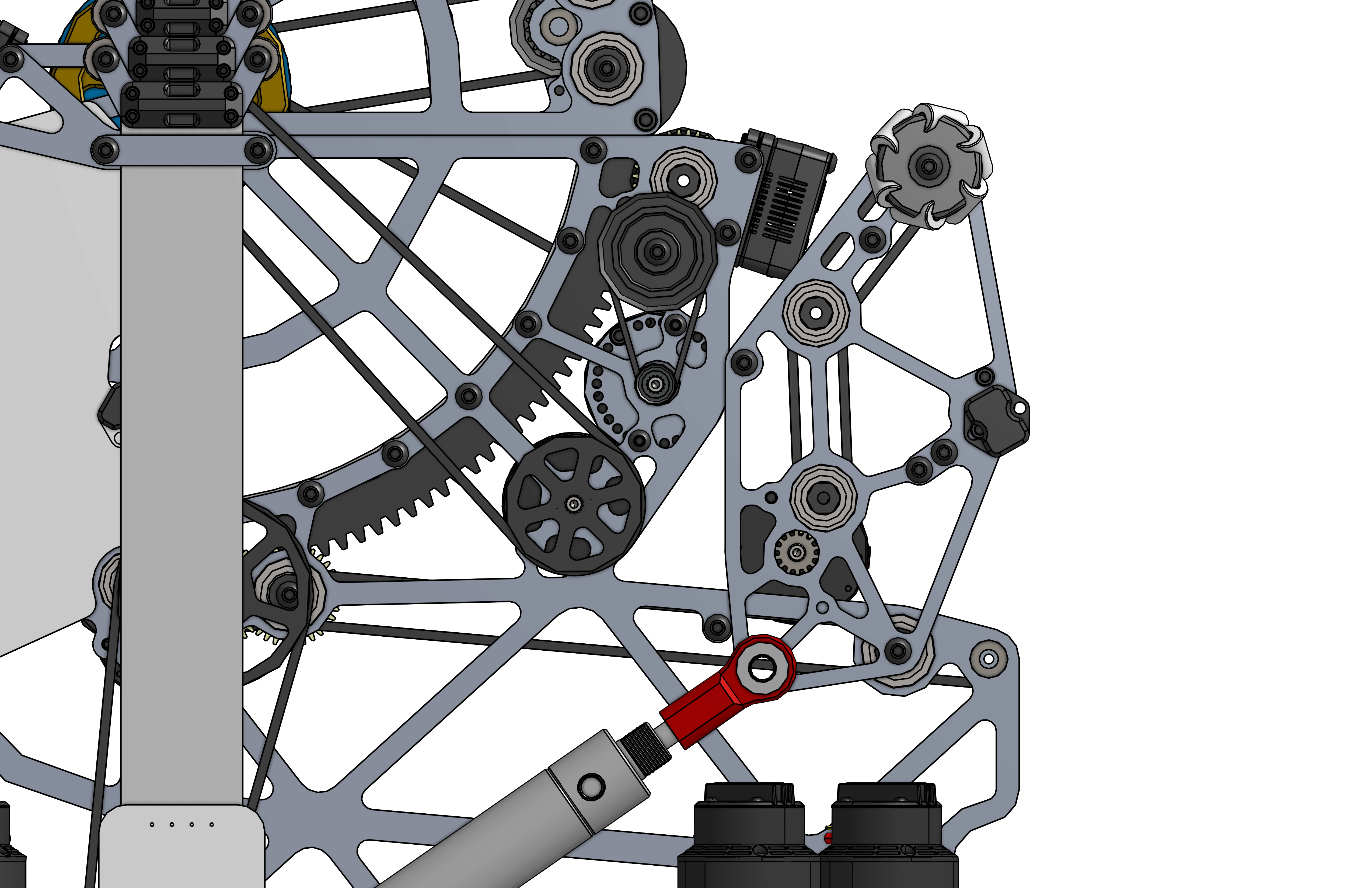

Pivot driven by chain and a torque transfer bar, separate stationary wheel axles, bent polycarb funnel, mounted with nutstrips
-

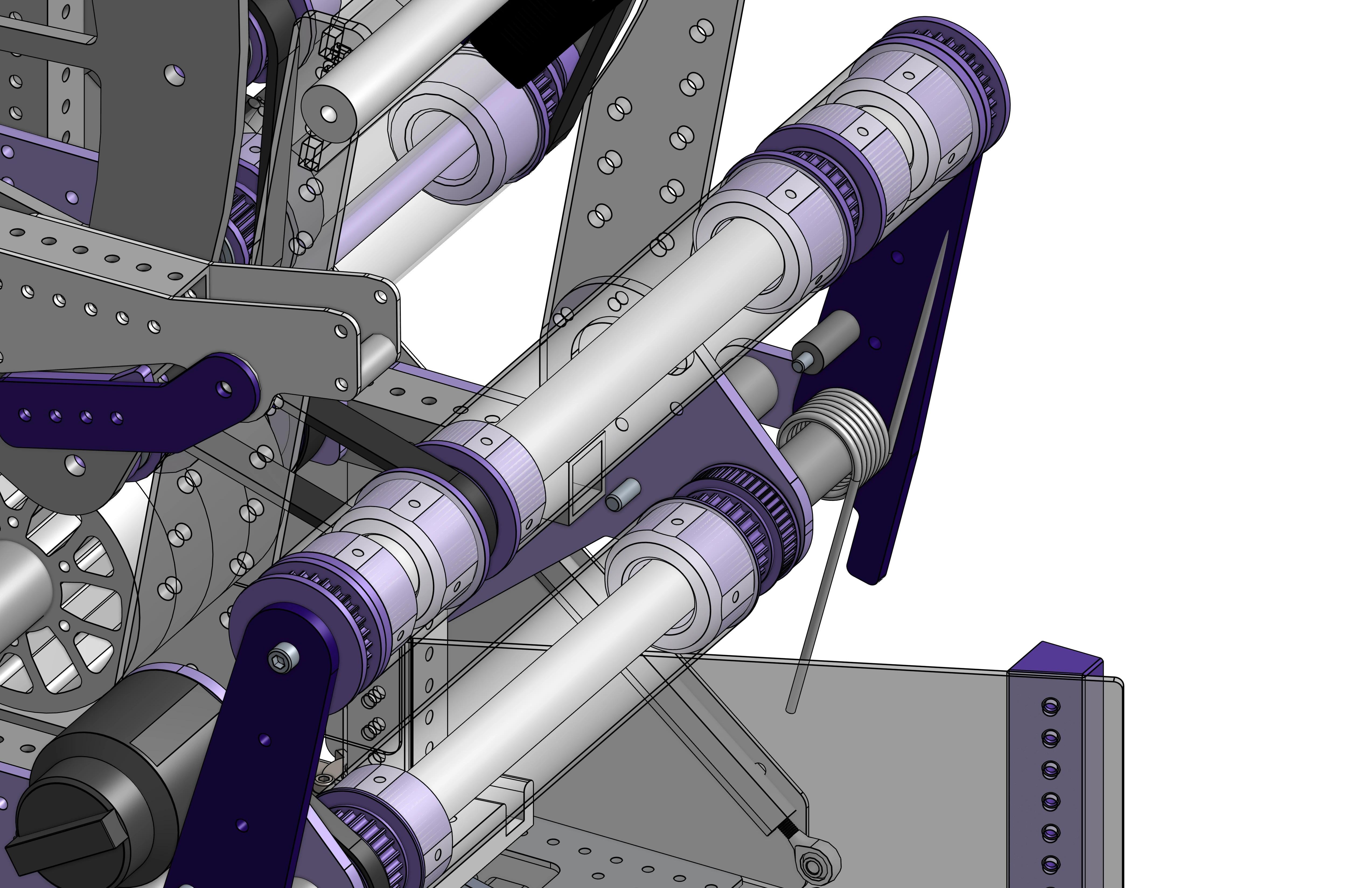

Very different from most modern intakes, it helps center heavy gamepieces through a gap in the bumpers, driven by chain with a deadaxle pivot
-

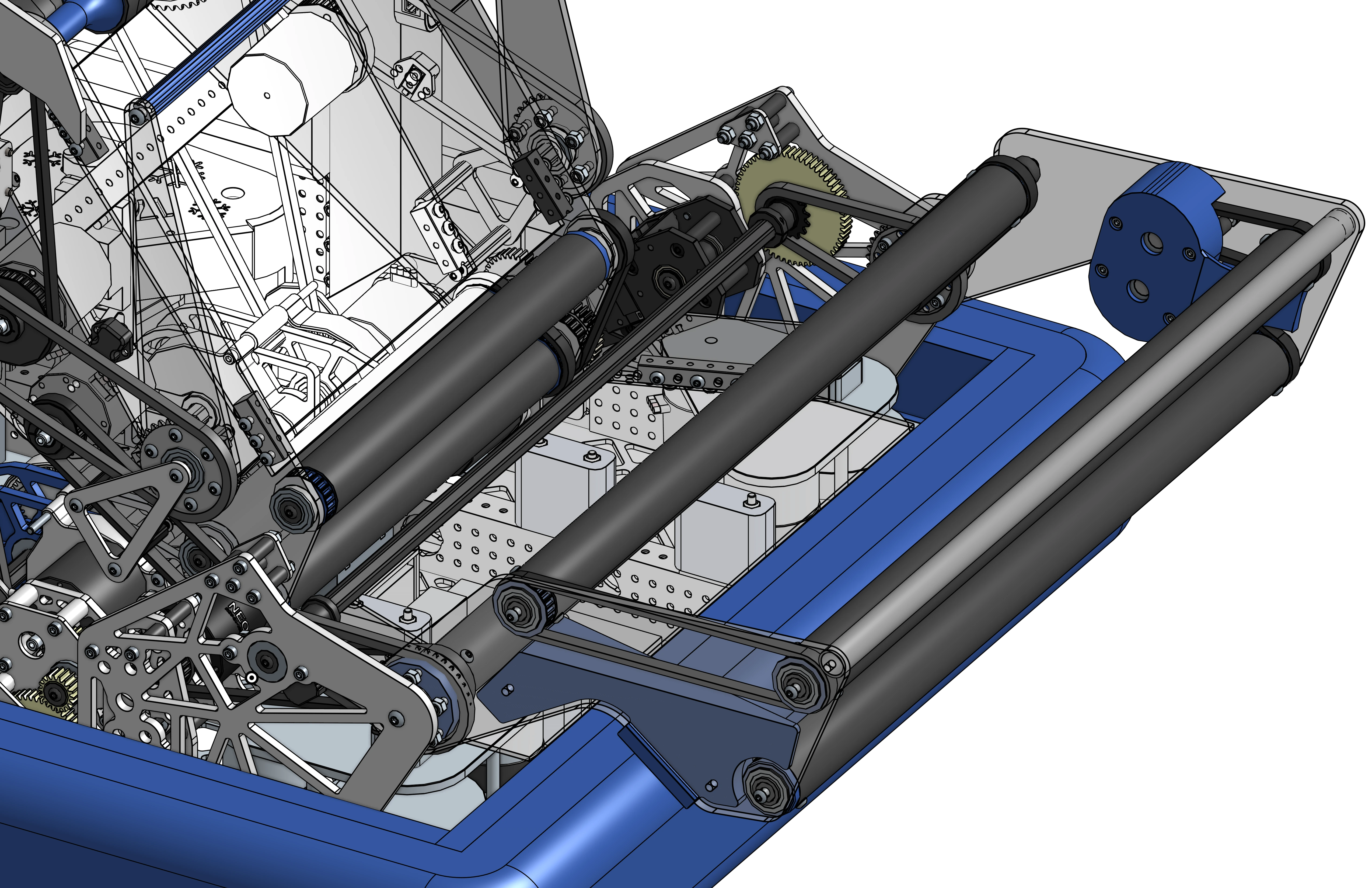

Some rollers are decoupled so the pivot for the intake can be lowered below the ball path
-

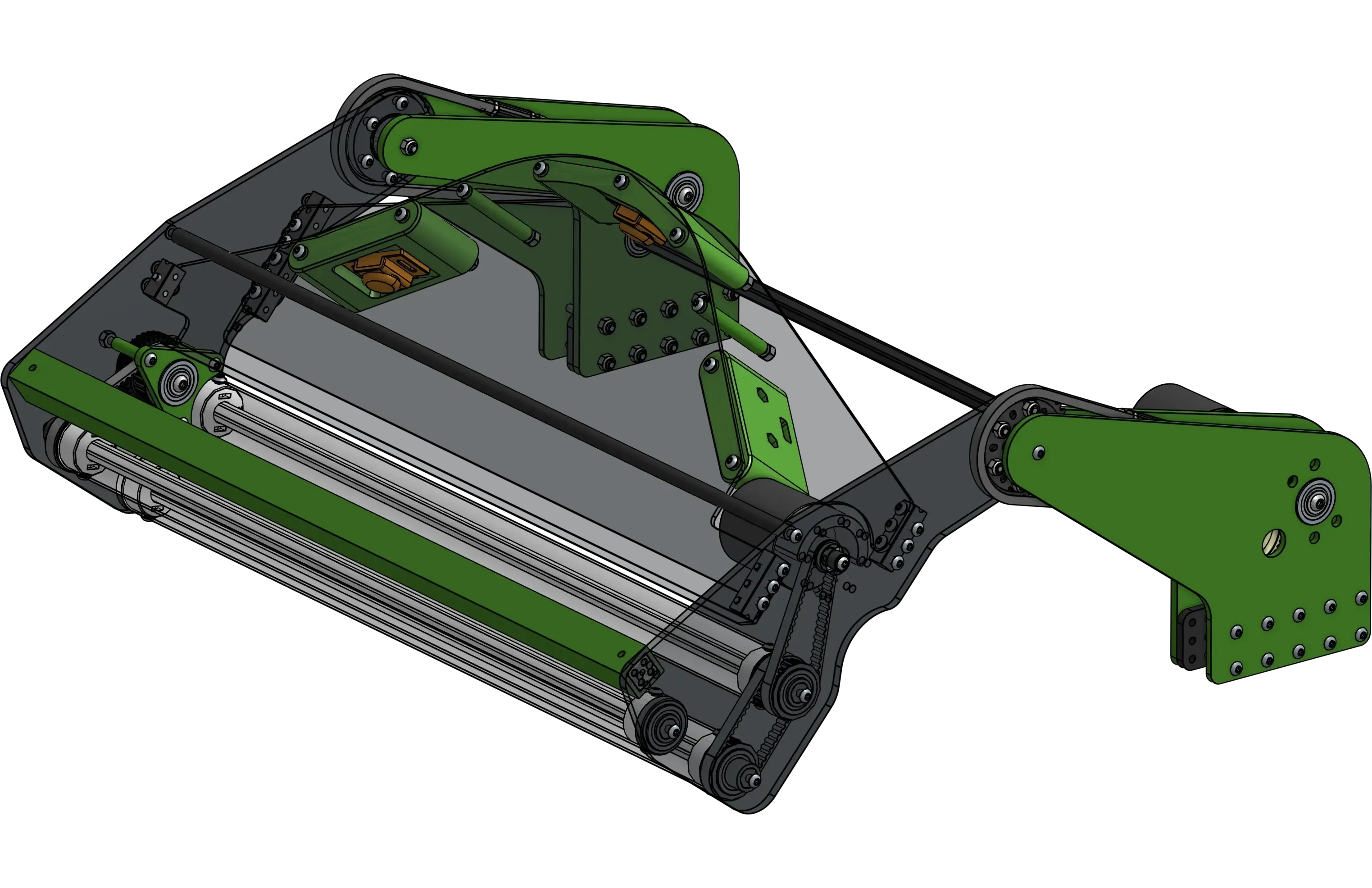

Uses rollers to center a piece against bent polycarb, then flips it back for a passthrough. Examples of how to mount cameras and sensors to allow more automation
