1D: Design Methodology - Simple Swerve Drivebase

Assembly

Now that the part studio is finished, you can create the drivetrain assembly.

Previously, in Stage 1A when you created assemblies one of the parts in the group mate was fixed in place. However, this is not considered a good practice as it is not parametric. This is where the origin cube comes in: the origin cube has a mate connector placed at the origin of the part studio. After inserting and grouping all of the parts, you can fasten the origin cube to the origin of the assembly. This aligns the part studio origin and assembly origin.

Instructions

Start by creating a new assembly tab called Drivetrain Assembly in the Drivetrain folder. Follow the instructions in the slides to complete the assembly.

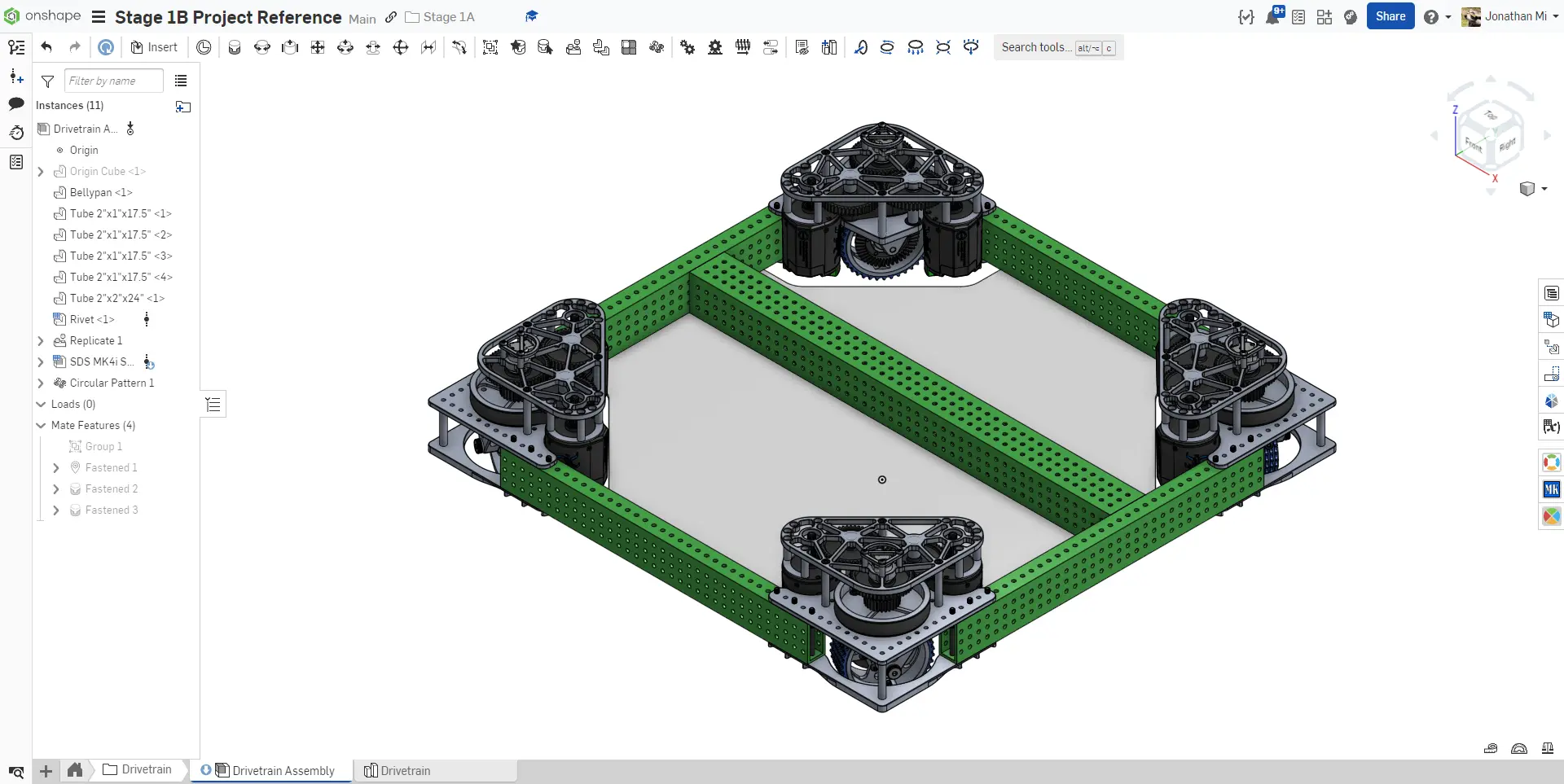

0. The assembly.

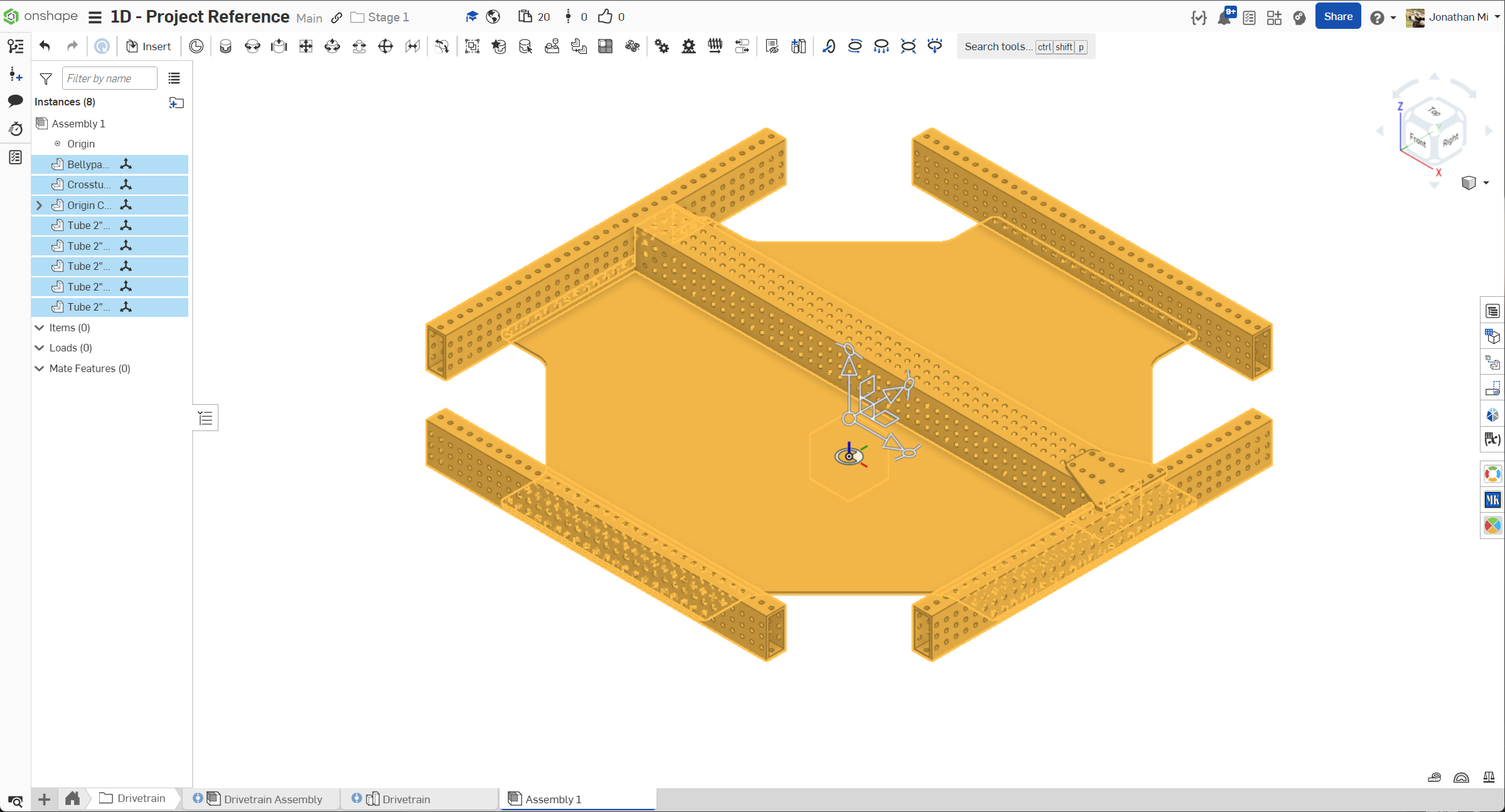

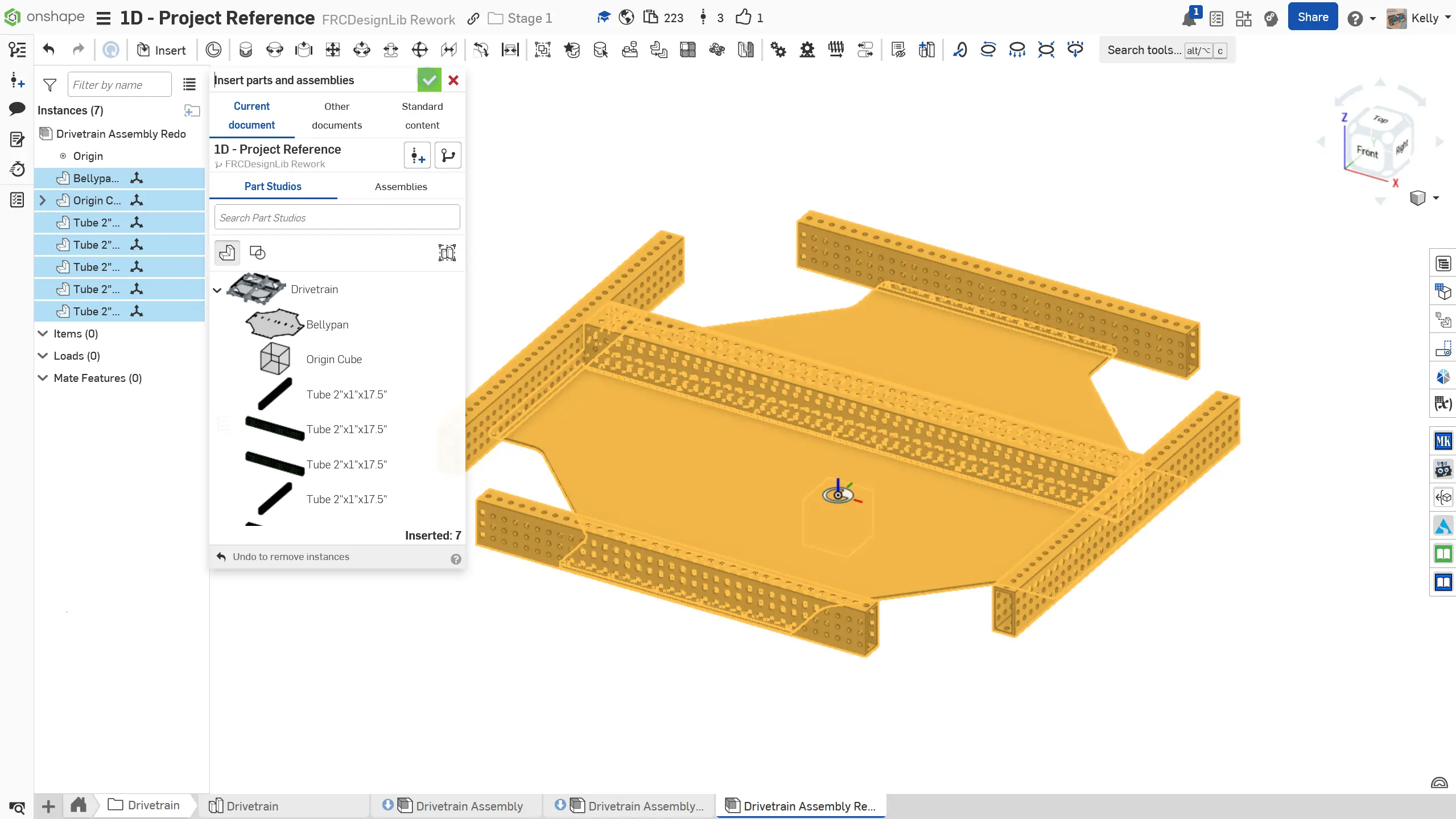

1. Insert the parts into the assembly, Group them, then fasten the origin cube to the origin of the assembly.
2. Insert the MK4i module from the MKCad app into the assembly and mate it into place.
3. Use the Circular Pattern assembly tool to finish assembling the modules.

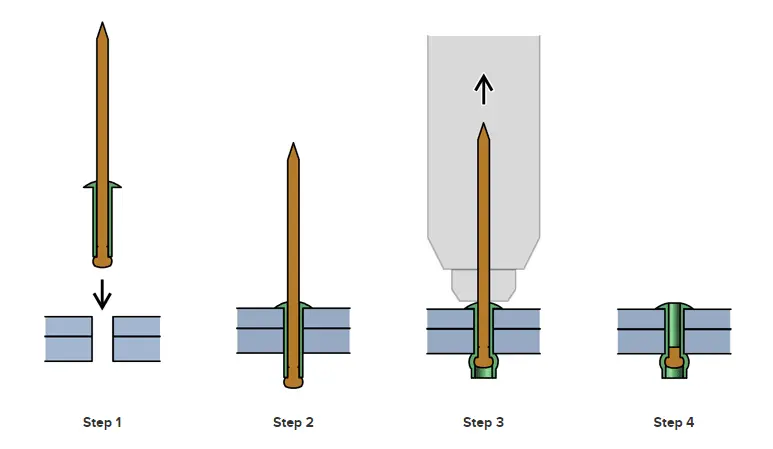

4. Insert a 3/16" rivet from the MKCad app into the assembly and mate it.

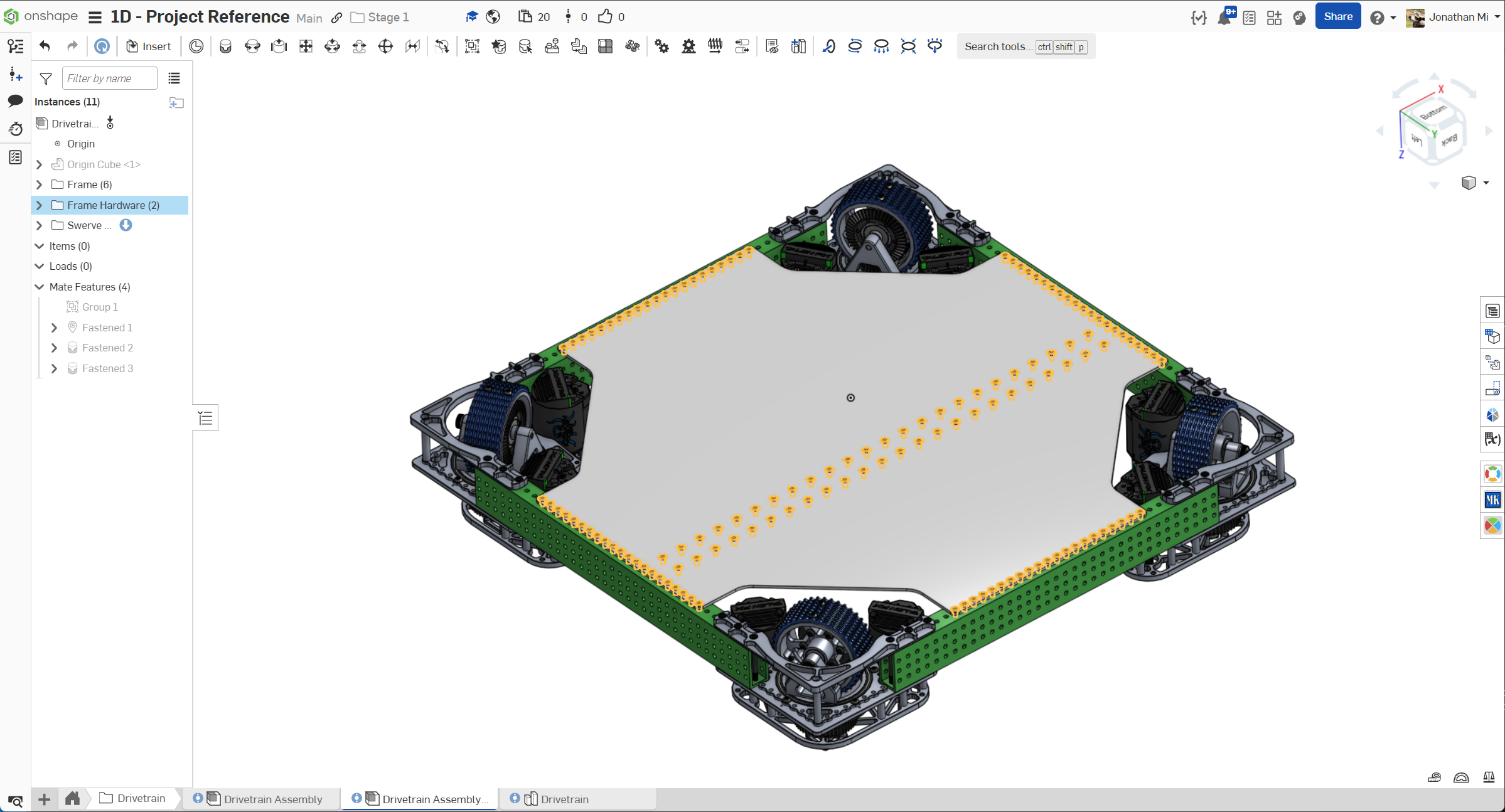

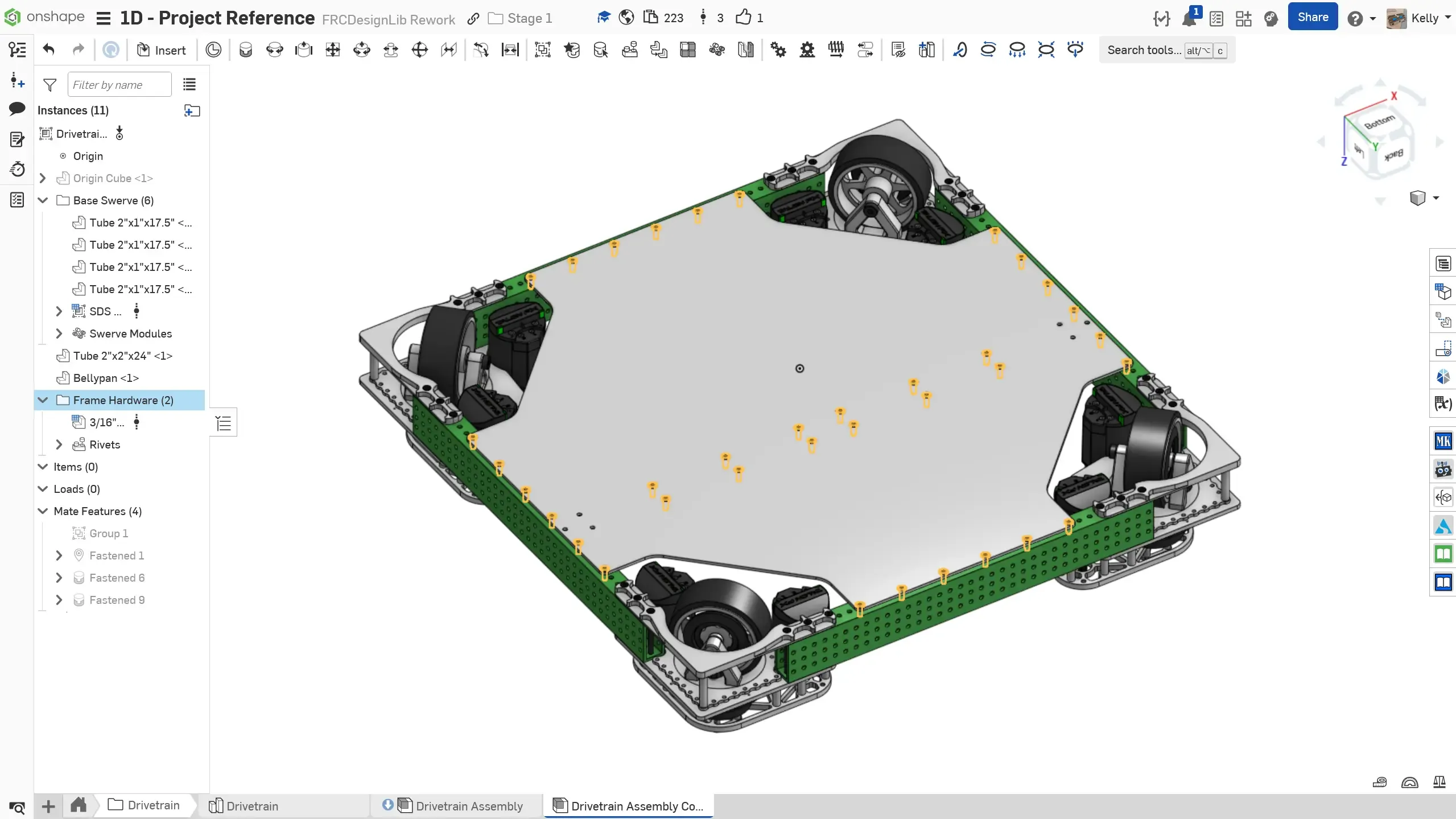

5. Use the Replicate assembly tool to replicate the rivet and rivet mate onto all matching geometry on the bottom face of the bellypan

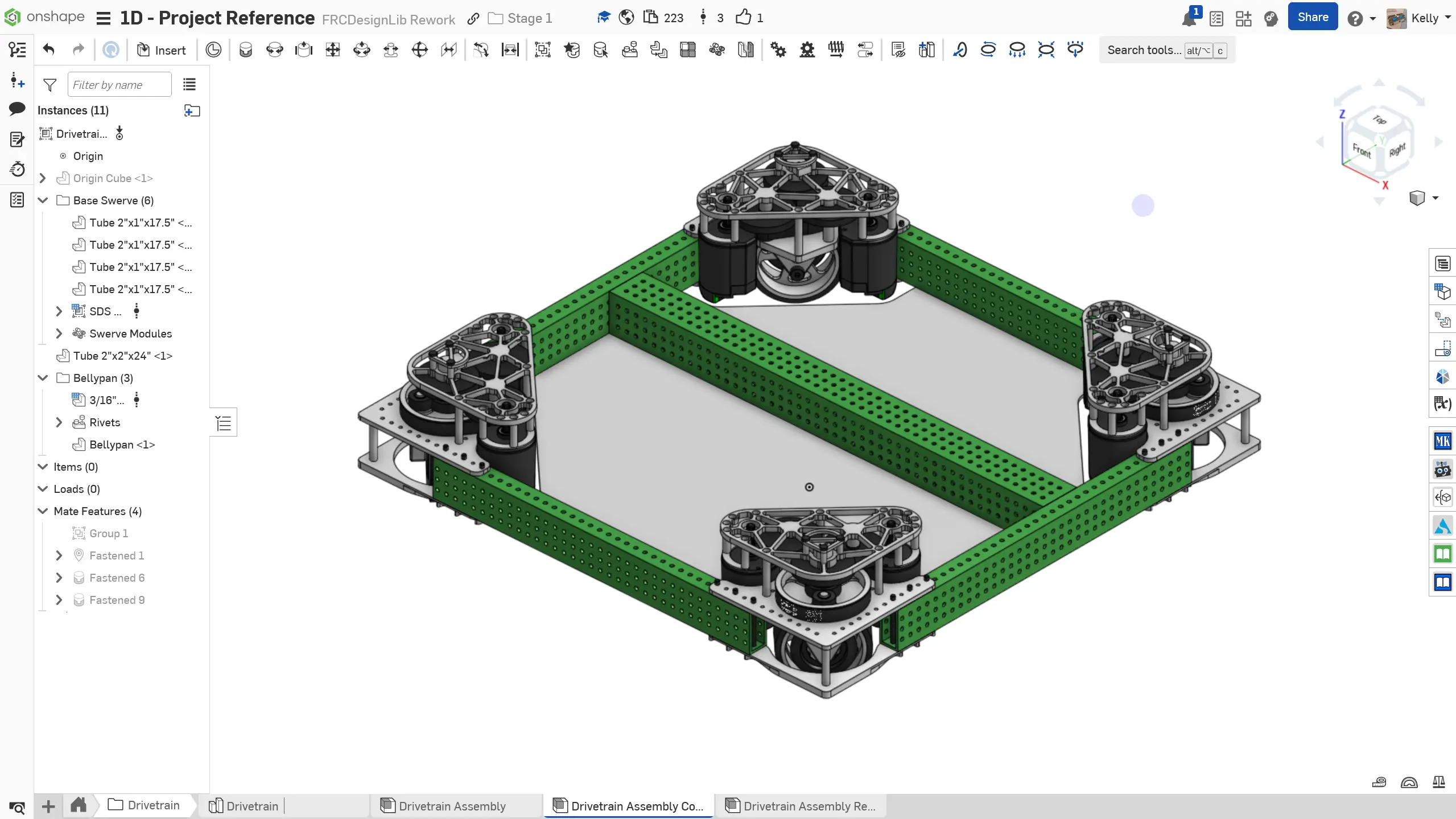

6. The assembly.

Replicate Tool

The Replicate tool is a very powerful tool for duplicating parts in assemblies. Replicate works by creating a copy of the selected parts, and duplicates the selected mate onto the selected geometry. Note that the selected geometry must exactly match the origin mate geometry, eg: the hole diameter must be the same for replicate to copy a rivet.

In your assembly, you use the select the face for replicate to apply to. What this does is identify all geometry that matches the original mate and then copy the selected components and mate to those matching locations on the selected face. If you want to replicate onto only specific holes, you can change the drop-down menu to "Match Individual Edges".

Match Individual Edges for Replicate
