1A: Onshape Fundamentals - Section 3
Exercise 5: Adding Fasteners and Gussets to a Full Frame

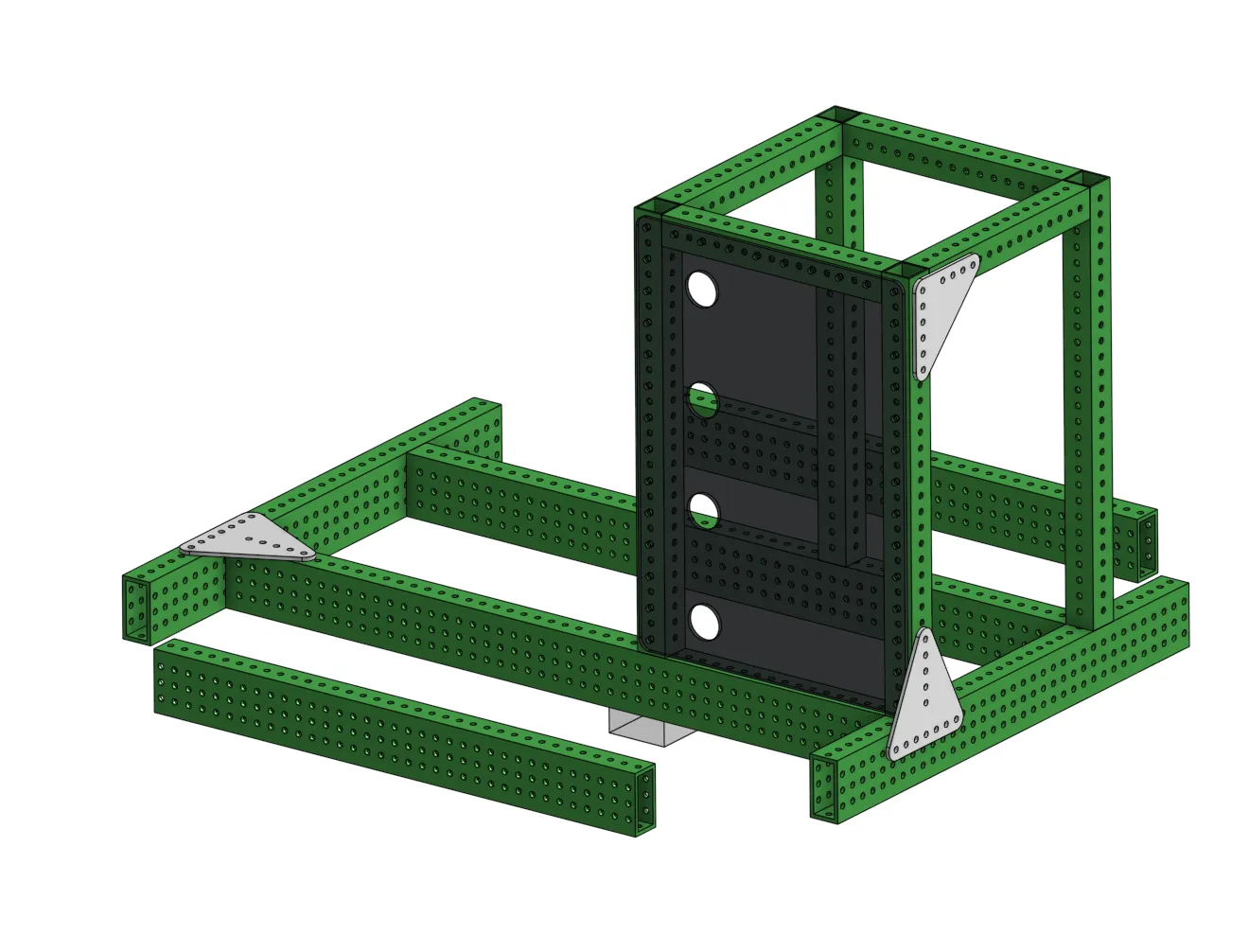

In the final exercise of 1A, you will assemble a full superstructure with various plates and gussets.
Insert the part studio from Section 2: Exercise 3 and assemble all of the plates and gussets together. Add the rest of the gussets, the swerve modules, rivets, and bolts.
The goal here is to practice applying everything you've learned so far.
Tip
CTRL + C and CTRL + V is your friend
Once you're done assembling the drivebase and frame, move on to 1B to learn how to design and assemble gearboxes and belt drives!
