Exercise 3: Gusset Setup

Info

This is a quick setup for the next activity.

Find the "S3 Exercise 3" part studio in the "Section 3" folder in your copy of the template document. Create a gusset to connect the middle box tube to the outer frame.

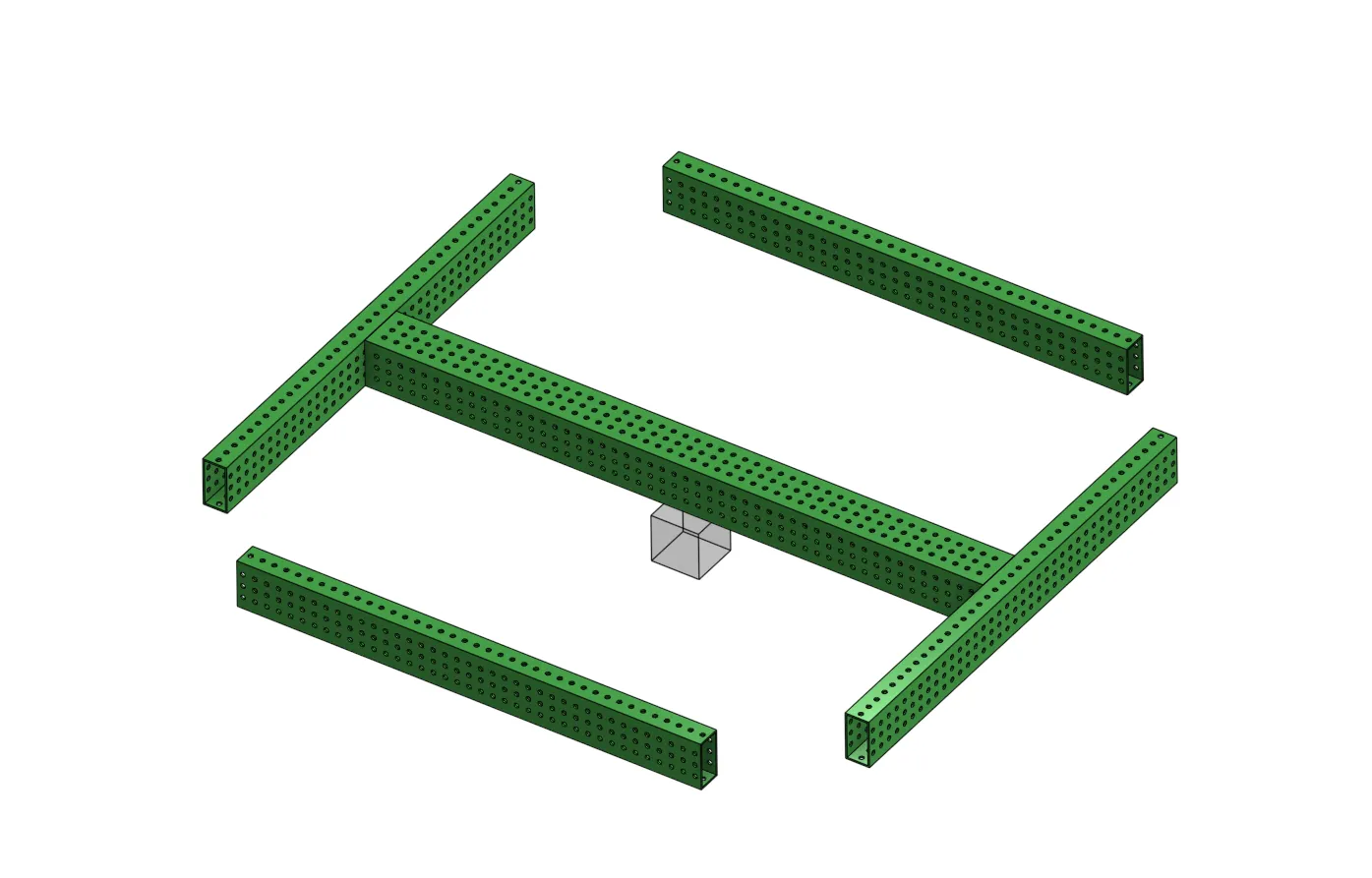

The chassis you'll be working with

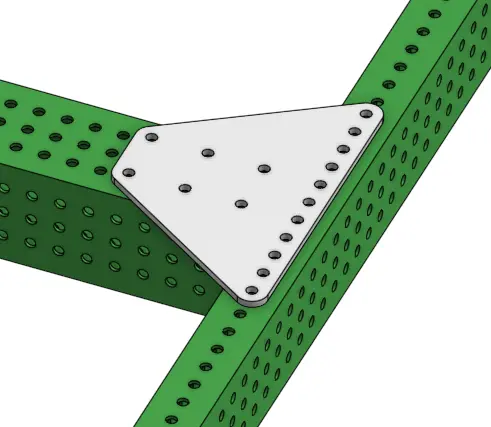

Example of the gusset

---

When you are done with the gusset, move on to the next exercise.
